Brake motor 2.2KW/3HP-6Pole-B35 Mount

Short Description:

Zhuhong Brake Three-Phase Asynchronous Motor
▪️TYPE:YEJ2-112M-6
▪️MOUNTING:B35
▪️POWER: 2.2KW/3HP
▪️POLE:6P/935RMP
▪️VOLTAGE:380V
▪️FREQUENCY:50HZ
▪️PROTECTION:IP55
▪️INSULATION:CLASS 155(F)

✅ Compact structure, highly durable.
✅ The housing is constructed from cast iron, offering strong vibration resistance, exceptional durability, and wear resistance.
✅ The high-hardness switches are durable and offer a long service life.
✅ The stator is made of high-quality silicon steel sheets and 100% pure copper, resulting in low heat generation, high energy efficiency, low loss, and long service life.
✅ The rotor is manufactured using industry-leading technology, ensuring high precision and quality.

Send email to us

Product Detail

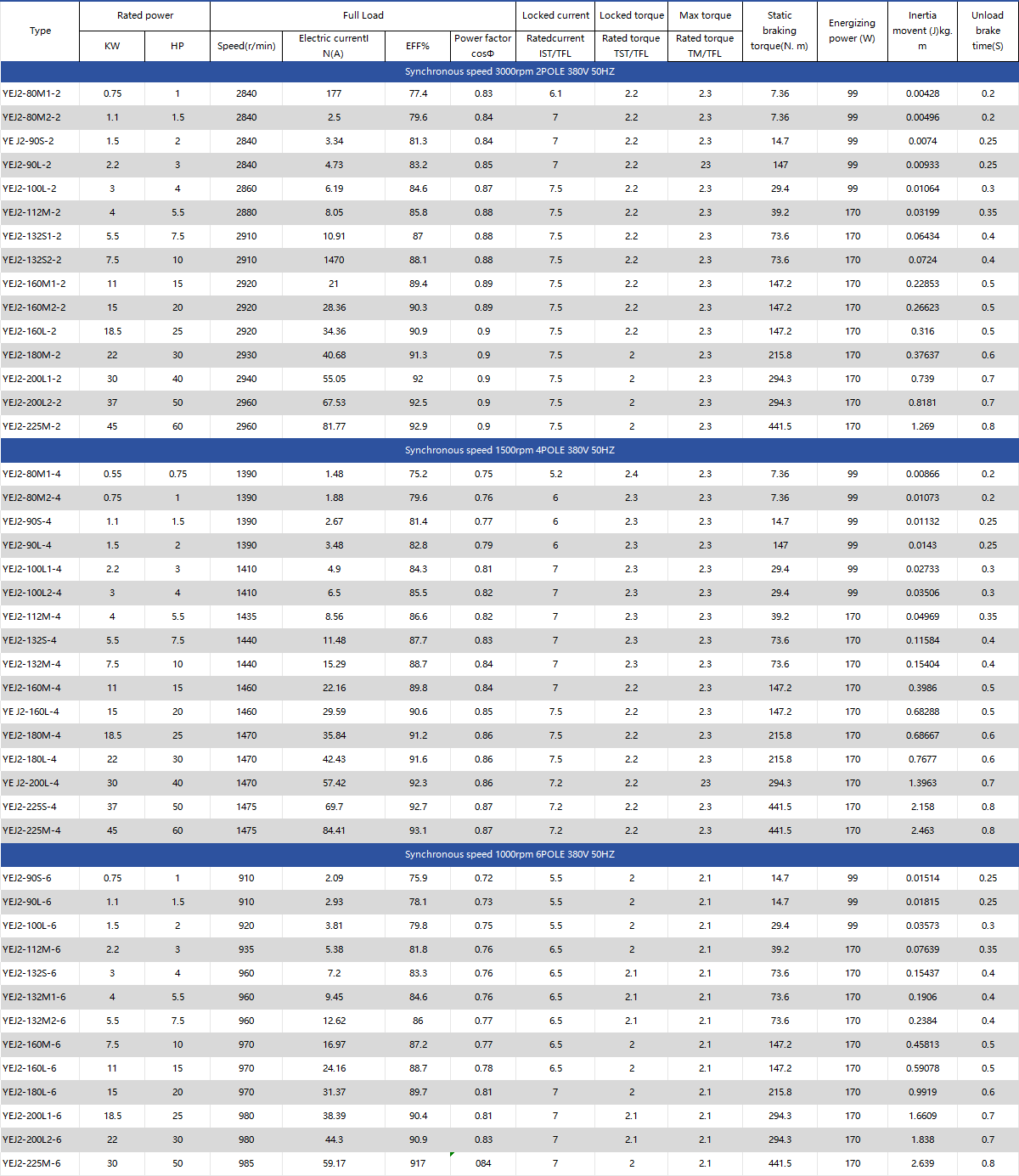

Motor Data Details

Basic Information

Packaging & Delivery

Product Tags

This three-phase asynchronous brake motor features low noise and high stability. The housing and junction box are made of cast iron, ensuring durability, strong vibration resistance, and wear resistance. The shaft utilizes industry-leading materials and processing techniques, resulting in high hardness and strength. The stator is constructed from high-quality silicon steel sheets wound with 100% copper wire, offering high stability, excellent heat dissipation, high energy efficiency, and low losses.

Previous: Single-phase iron-cased motor 0.75KW/1HP-4Pole-B3 Mount

Next:

Model NO.	YEJ2-112M-6	Number of Stator	Three-Phase
Species	YEJ2 Series Three-Phase	Rotor Structure	Squirrel-Cage
Casing Protection	Protection Type	Number of Poles	6
Starting Mode	Direct on-line Starting	Certification	ISO9001,CCC CE
Colour	Blue,Black,Grey	Mount	B35
Coor	Blue,BlackGrey	Packing	Wooden Case
Lead Time	15-25days	Protection Class	IP54,IP55
Temperature	-15℃~40℃	Transport Package	Wooden Case
Trademark	ZHUHONG	Origin	Zhejiang,China
