Three-phase cast iron Motor 7.5KW/10HP-4Pole-B3 Mount

Short Description:

Zhuhong Three-Phase Asynchronous Motor
▪️TYPE:YE3-132M-4
▪️MOUNTING:B3
▪️POWER: 7.5KW/10HP
▪️POLE:4P/1465RMP
▪️VOLTAGE:380/660V
▪️FREQUENCY:50HZ
▪️PROTECTION:IP55
▪️INSULATION:CLASS 155(F)

✅ The cast iron housing offers high protective strength and exceptional durability.
✅ Class F insulation protects the product from adverse effects.
✅ S1 continuous duty cycle: capable of sustained, continuous operation without issue.
✅ 7.5 kW High Horsepower: Powerful, Surging, and Unstoppable


Product Detail

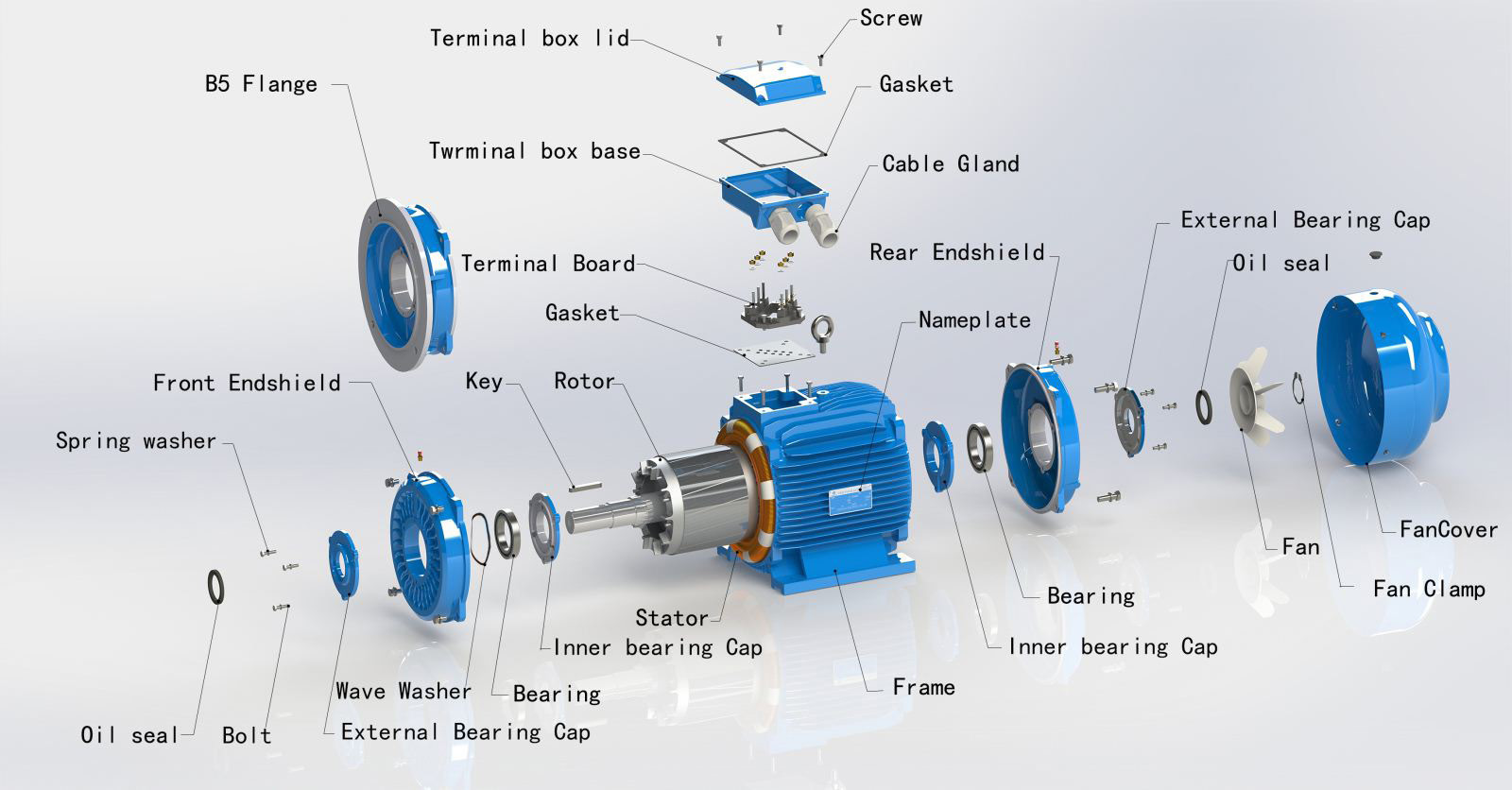

Motor Parts

Basic Information

Packaging & Delivery

Product Tags

This 7.5 kW three-phase asynchronous motor features an internal rotor manufactured using industry-leading technology. The stator is constructed from high-quality silicon steel laminations and 100% pure copper windings, ensuring exceptional stability, high energy efficiency, and minimal power loss. The housing is crafted from cast iron, offering superior structural strength and outstanding durability. Finished in a distinctive “5010 Blue” paint, the exterior is not only aesthetically pleasing but also highly resistant to peeling. Overall, this motor represents a perfect fusion of attractive design, robust performance, and enduring durability.


  • Previous:
  • Next:

  • 1

    Model NO. YE3-132M-4 Number of Stator Three-Phase
    Species YE3 Series Three-Phase Rotor Structure Squirrel-Cage
    Casing Protection Protection Type Number of Poles 4
    Starting Mode Direct on-line Starting Certification ISO9001,CCC CE
    Colour Blue,Black,Grey Mount B3
    Coor Blue,BlackGrey Packing Carton
    Packing/Wooden Case
    Lead Time 15-25days Protection Class IP54,IP55
    Temperature -15℃~40℃ Transport Package Carton
    Packing/Wooden Case
    Trademark ZHUHONG Origin Zhejiang,China
    Package Size 52.5*29*37
    Package Gross Weight 64kg
    Lead Time 25day
