Three-phase cast iron Motor 5.5KW/7.5HP-2Pole-B3 Mount

Short Description:

huhong Three-Phase Asynchronous Motor
▪️TYPE:IE3-132S1-2
▪️MOUNTING:B3
▪️POWER: 5.5KW/7.5HP
▪️POLE:2P/2935RMP
▪️VOLTAGE:380V
▪️FREQUENCY:50HZ
▪️PROTECTION:IP55
▪️INSULATION:CLASS 155(F)

✅ High load-bearing capacity, low vibration, and safe operation.
✅ High energy efficiency, low loss, energy-saving, and high rotor torque.
✅ Class F insulation, S1 continuous duty, IP55 protection rating—offering high safety and reliability.
✅ Easy to use and maintain


Product Detail

Motor Parts

Motor Data Details

Basic Information

Packaging & Delivery

Product Tags

This 5.5 kW three-phase asynchronous motor features an exterior finished in orange paint and housed within a cast-iron casing; this design not only offers an aesthetically pleasing appearance but also ensures high safety, minimal vibration, and exceptional durability. Internally, the motor is equipped with a high-precision rotor and a stator wound with 100% copper wire, delivering superior stability, high energy efficiency, and low power loss. Manufactured using industry-leading processes, it boasts a high degree of protection and is highly resistant to damage. It is widely utilized across various industrial sectors, commonly powering equipment such as water pumps, air compressors, and fans.


  • Previous:
  • Next:

  • 1

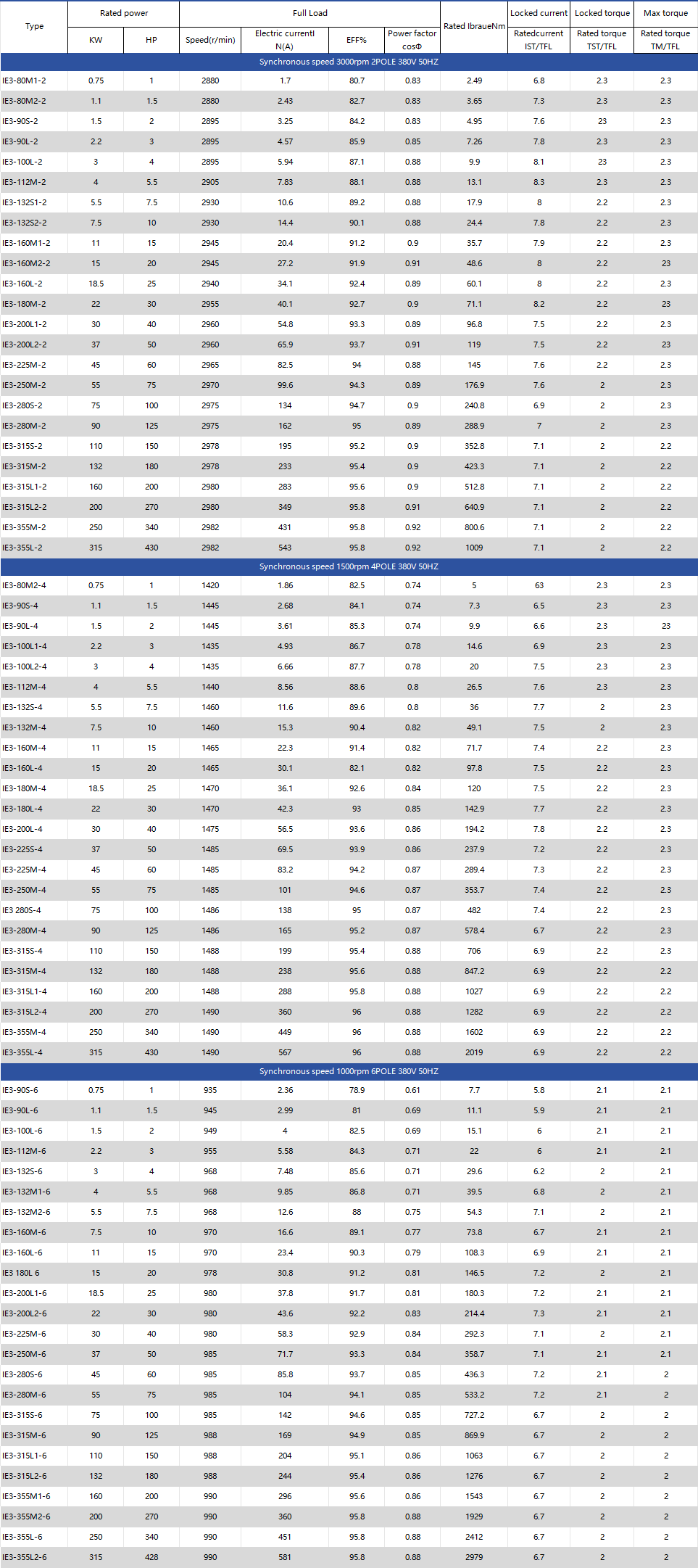

    微信图片_20260522091050_150_12

    Model NO. IE3-132S1-2 Number of Stator Three-Phase
    Species IE3 Series Three-Phase Rotor Structure Squirrel-Cage
    Casing Protection Protection Type Number of Poles 2
    Starting Mode Direct on-line Starting Certification ISO9001,CCC CE
    Colour Blue,Black,Grey Mount B3
    Coor Blue,BlackGrey Packing Carton
    Packing/Wooden Case
    Lead Time 15-25days Protection Class IP54,IP55
    Temperature -15℃~40℃ Transport Package Carton
    Packing/Wooden Case
    Trademark ZHUHONG Origin Zhejiang,China
    Package Size 49.5*29*37
    Package Gross Weight 48kg
    Lead Time 25day
