Three-Phase Cast Iron Motor – 2.2 kW (3 HP) – 4-Pole-B3 Mount

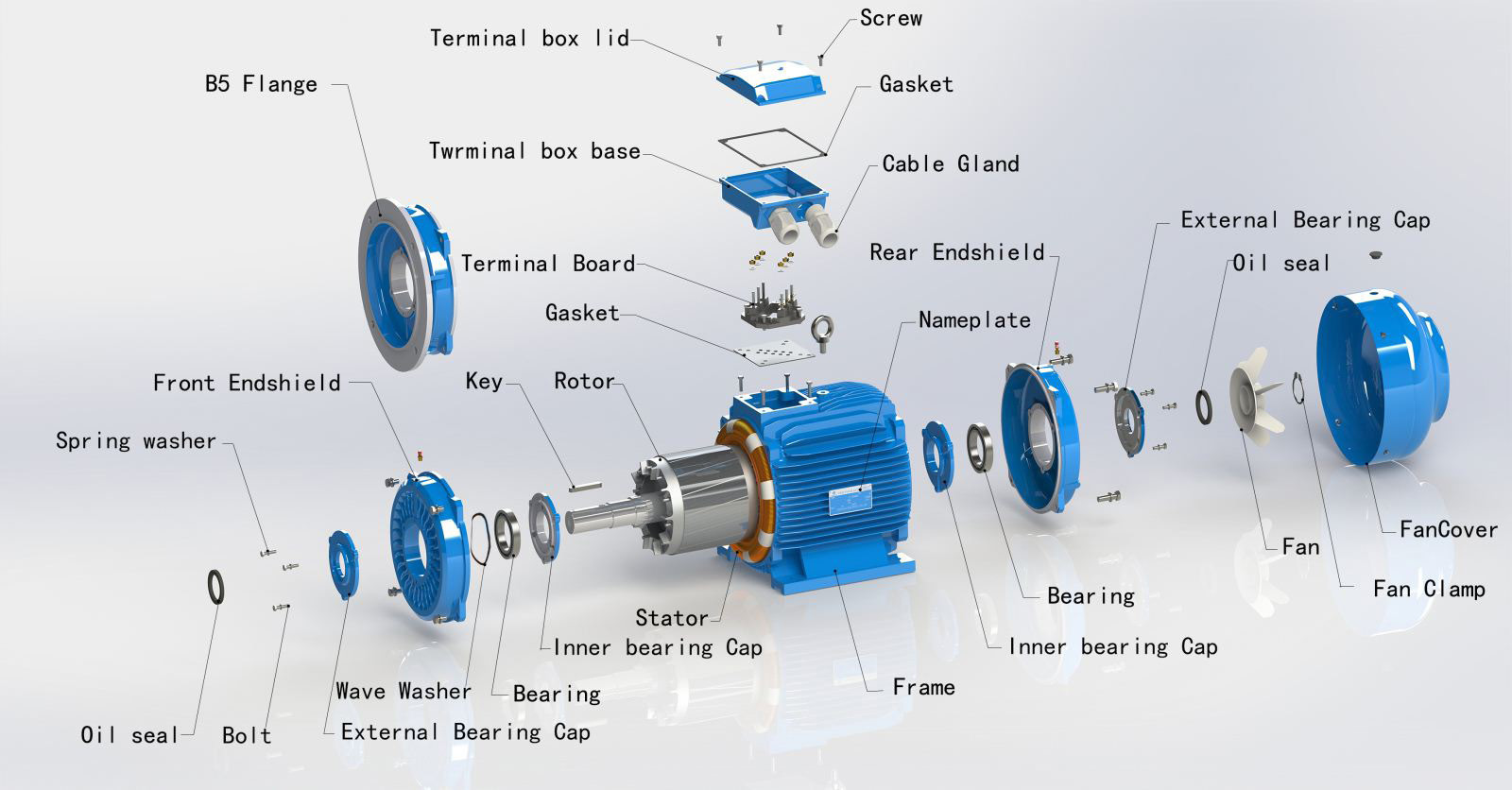

This three-phase asynchronous motor features a cast iron casing, making it vibration-resistant, wear-resistant, robust, and durable. The rotor utilizes industry-leading machining technology, ensuring high precision and durability. The stator is constructed from high-quality silicon steel sheets wound with 100% copper wire, resulting in strong stability, low heat generation, high energy efficiency, and minimal energy loss. IP55 dust and moisture protection makes it suitable for harsh industrial environments. Its S1 continuous duty cycle allows for extended operation. It is commonly used in water pumps, compressors, food processing machinery, and other agricultural and industrial applications.
| Model NO. | IE2-100L1-4 | Number of Stator | Three-Phase |
| Species | IE2 Series Three-Phase | Rotor Structure | Squirrel-Cage |
| Casing Protection | Protection Type | Number of Poles | 4 |
| Starting Mode | Direct on-line Starting | Certification | ISO9001,CCC CE |
| Colour | Blue,Black,Grey | Mount | B3 |
| Coor | Blue,BlackGrey | Packing | Wooden Case |
| Lead Time | 15-25days | Protection Class | IP54,IP55 |
| Temperature | -15℃~40℃ | Transport Package | Wooden Case |
| Trademark | ZHUHONG | Origin | Zhejiang,China |
| Package Size | 41.5*23.5*28 |
| Package Gross Weight | 27kg |
| Lead Time | 25day |
