Three-phase cast iron Motor 11KW/15HP-4Pole-B3 Mount

Short Description:

Zhuhong Three-Phase Asynchronous Motor
TYPE:YE3-160M-4
MOUNTING:B3
POWER:11KW/15HP
POLE:4P/1470RMP
VOLTAGE:380/660V
FREQUENCY:50HZ
PROTECTION:IP55
INSULATION:CLASS 155(F)

✅The cast iron shell has a compact structure, high protection, wear resistance, vibration resistance, and corrosion resistance.

✅The coil is made of 100% copper, ensuring high transmission efficiency and long-term stable operation, making it energy-saving and power-efficient.

✅Automated precision machining of the rotor and professional dynamic balancing testing ensure rotor accuracy and service life.

✅The bearings are precision-machined, resulting in high hardness, good toughness, excellent dust resistance, low noise, wear resistance, and a long service life.


Product Detail

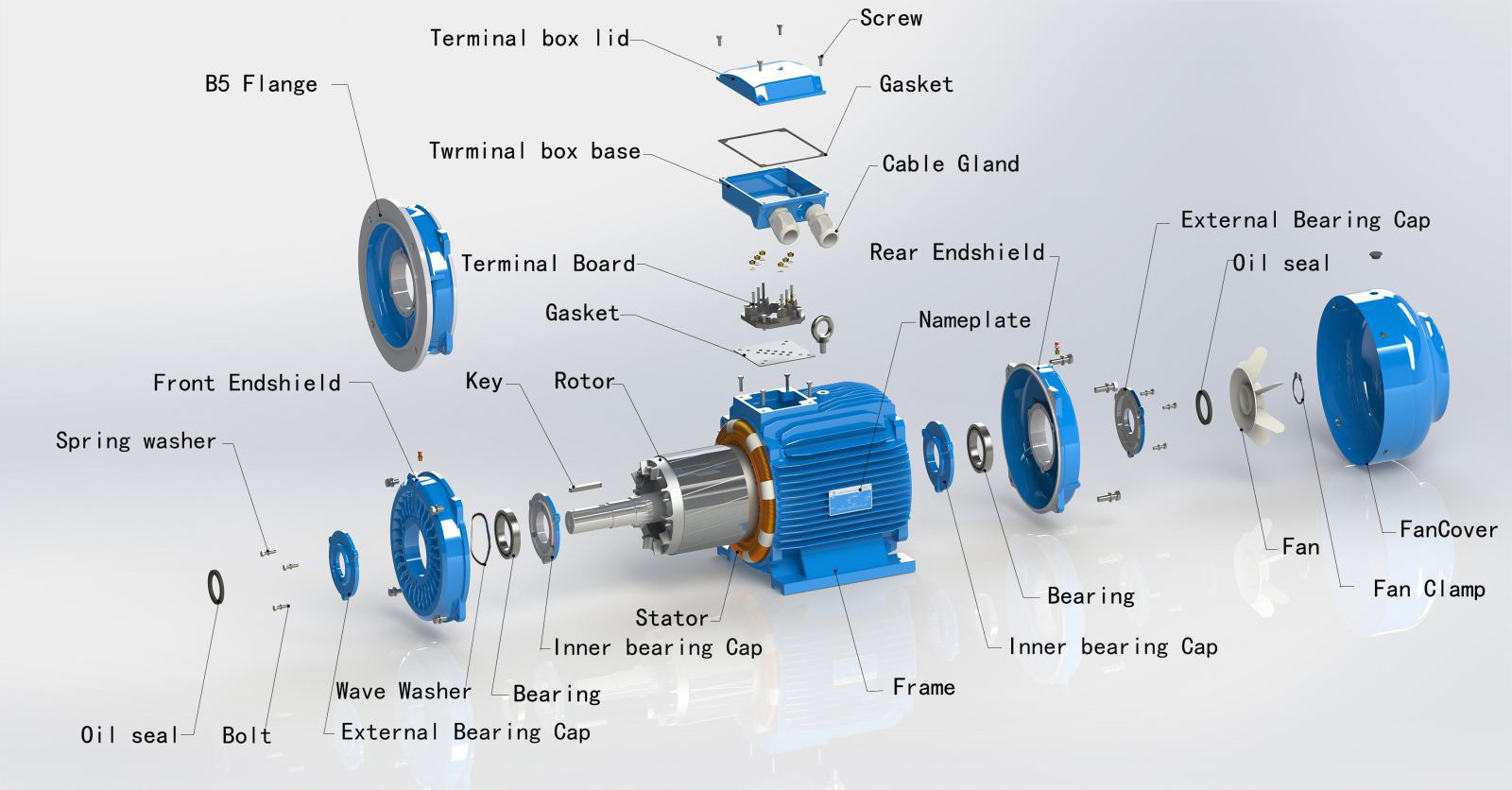

Motor Parts

Basic Information

Packaging & Delivery

Product Tags

This three-phase motor features a compact cast iron housing with excellent corrosion resistance and heat dissipation. The motor shaft is made of stainless steel for exceptional strength. All internal windings use 100% pure copper wire, ensuring high transmission efficiency and long-term stable operation. The rotor undergoes automated precision machining and professional dynamic balancing testing, resulting in wear resistance and a long service life. It is widely used and popular in manufacturing and other industrial sectors.

  • Previous:
  • Next:

    • 1

    Model NO. YE3-160M-4 Number of Stator Three-Phase
    Species IE3 Series Three-Phase Rotor Structure Squirrel-Cage
    Casing Protection Protection Type Number of Poles 4
    Starting Mode Direct on-line Starting Certification ISO9001,CCC CE
    Colour Blue,Black,Grey Mount B3
    Coor Blue,BlackGrey Packing Carton
    Packing/Wooden Case
    Lead Time 15-25days Protection Class IP54,IP55
    Temperature -15℃~40℃ Transport Package Carton
    Packing/Wooden Case
    Trademark ZHUHONG Origin Zhejiang,China
    Package Size 66.5*35.5*52.5
    Package Gross Weight 96kg
    Lead Time 25day
